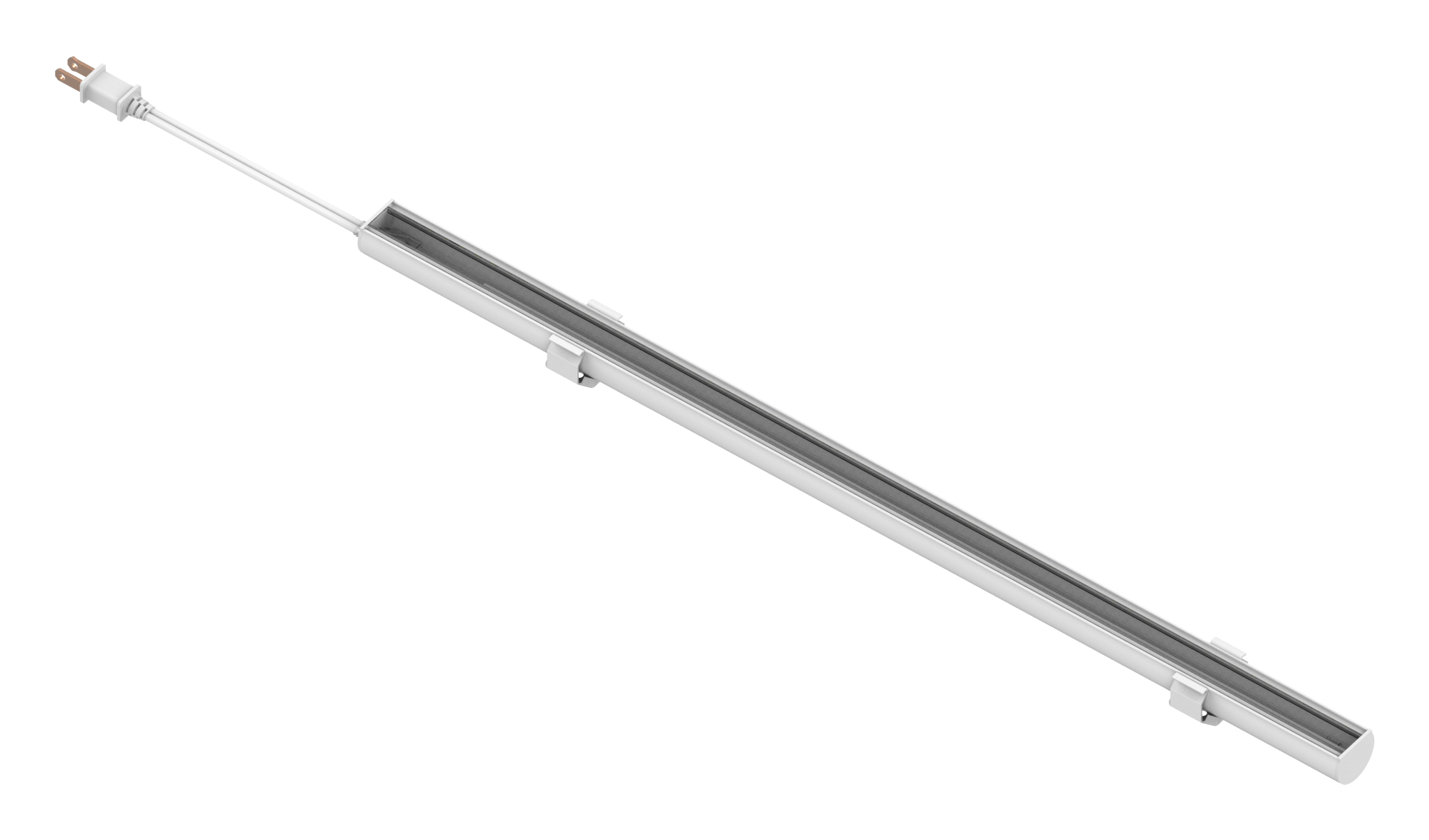

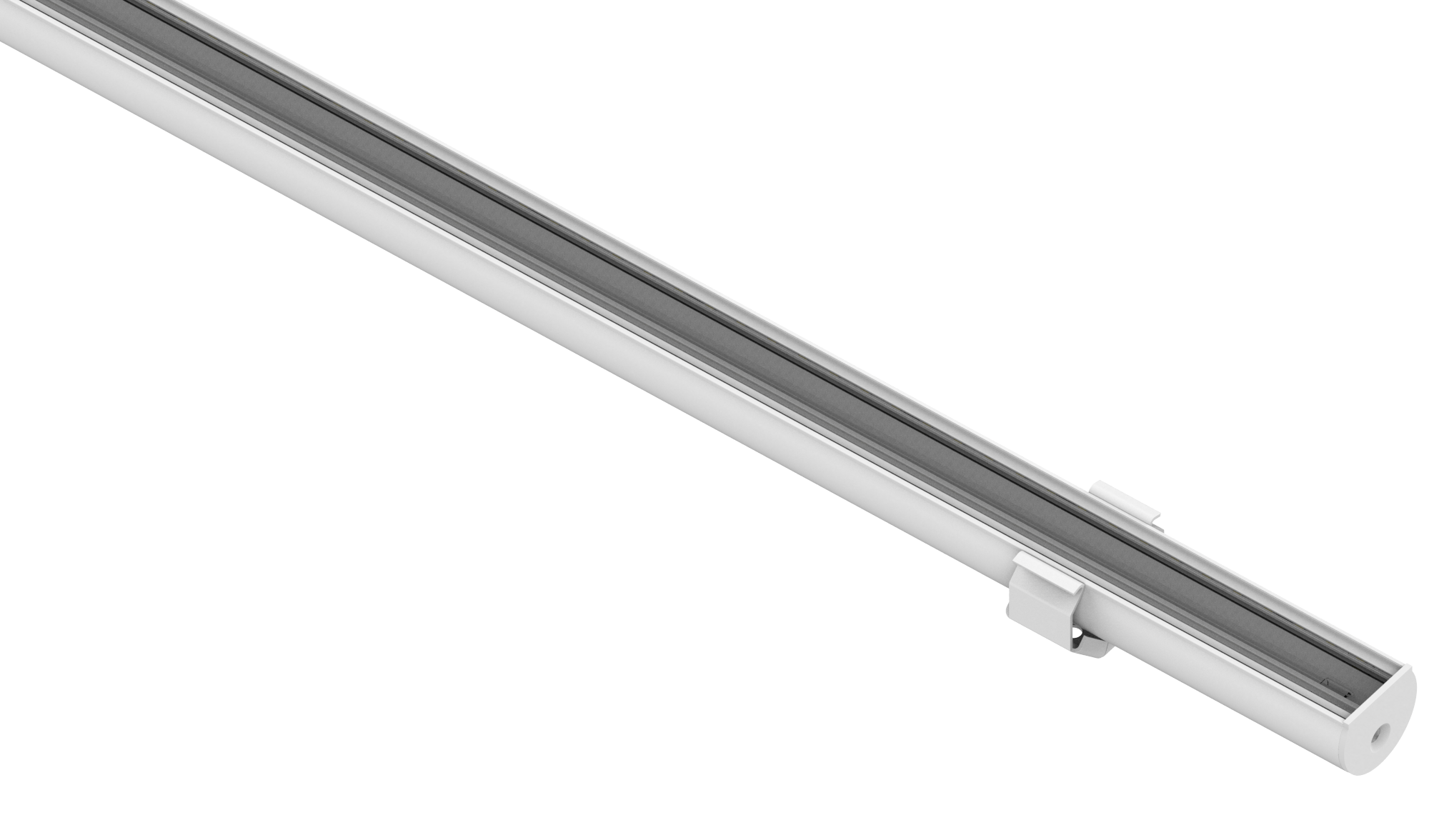

ZAMO Pivot

(A8-ZAMO-PVT)

ZAMO is a 120V flexible LED system that allows for field shaping. The 120V system does not require a remote driver. ZAMO is excellent to illuminate areas for cove lighting, accent lighting, backlighting, and other lighting applications.

General Features

Applications
Accent, Decorative, Surface, Recessed, Pendant Lighting
Viewing Angle
120°
Length
Built to Order (+/- 1/2" Tolerance)
Assembly Increment
4"
Mounting
Mounting Clips (Sold Separately)
Listing
Dry or Wet Location
UL2108, 67.1.9, 60.4, CSA C22.2#9
UL8750, CSA250
Closet Rating
Up to 3.6 Watts per Foot Maximum

Lamp Features

Lamp Type
LEDs
CRI
> 82
Efficacy
57 Lumens per Watt

Electrical

Dimming
Forward Phase (TRIAC)
Maximum Run
80’
Luminaire Voltage
120V

LED Color Options

color swatch
color swatch
color swatch
color swatch
color swatch

End View

Mounting Options

End Caps

Lightstrip End Cap
(A8-ZAMO-EC)

Channel End Cap
(A8-ZAMO-PVT-EC)

Connectors

3' Power Connector
(A8-ZAMO-TAPE-PC-3')

12" Jumper Cable
(A8-ZAMO-TAPE-JC-12")
