ZUVU Flush Wall Duo

(A2-ZUVU-FWD)

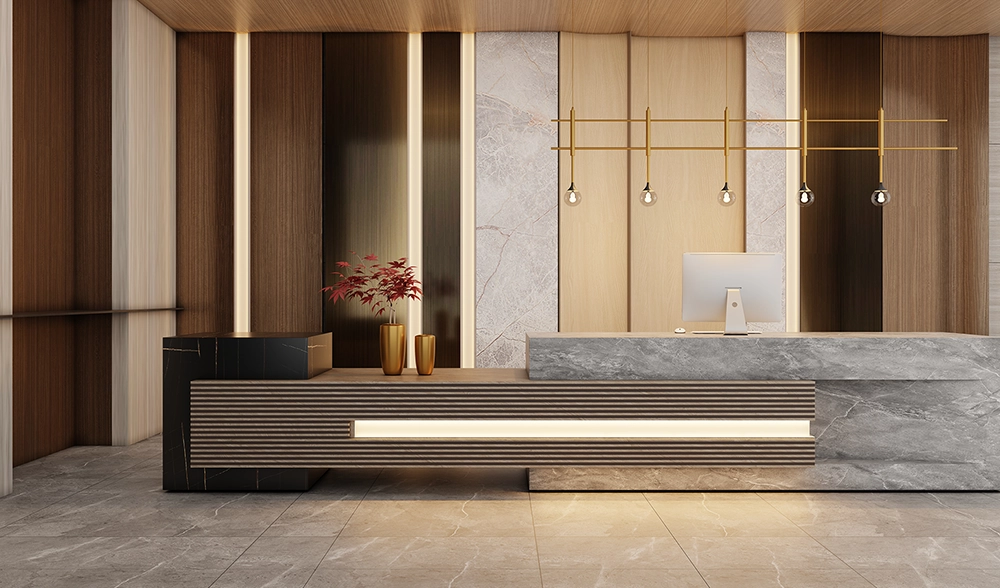

Designed for indoor and outdoor use, ZUVU is a slim profile linear system ideal for mud-in applications. ZUVU is flush with the architecture, delivering a stunning line of light.

Error: the field format must contains "%s" or "%1$s".

Downloads and Links

General Features

Applications

Mud-In, Accent, Decorative, Surface, Recessed Lighting

Lens

50% Semi-Frosted or 100% Frosted

Viewing Angle

120°

Length

Built to Order (Shipped in assembled 8’ segments)

Construction

Aluminum Extrusion

Weight

0.81 lbs per foot

Mounting

Mud-In

Listing

Dry or Damp Location
UL2108, 67.1.9, 60.4, CSA C22.2#9
UL8750, CSA250

Driver

Remote (Sold Separately)

Closet Rating

Up to 3.6 Watts per Foot Maximum

Temperature Ratings

Operating / Startup: -20° to 48°C (-4° to 120°F)
Storage: -40° to 76°C (-40° to 170°F)

Lamp Features

Lamp Type

LEDs

CRI

> 90

Efficacy
(Based on 35K CCT LED)

108 Lumens per Watt

Electrical

Dimming

0-10V, Forward / Reverse Phase, Lutron, DMX, DALI

Maximum Run
(Class 1 Applications)

20' (6W), 30' (4W), 36' (3W, 2W)

Maximum Run
(Class 2 Applications)

14' (6W), 24' (4W), 32' (3W), 36' (2W)

Luminaire Voltage

24VDC

LED Color Options

End Views

Lens

50% Semi Frosted Lens
(SF)
Slight Diode Image

100% Frosted Lens
(F)
No Diode Image: Line of Light

Mitered Corners

Illuminated 90° Internal Corner
(A2-ZUVU-FWD-90D-IN)

Illuminated 90° External Corner
(A2-ZUVU-FWD-90D-EX)

End Caps

End Cap
(A2-ZUVU-FWD-EC)

Mounting Accessories

180° Lock Bar
(A2-ZUVU-LB-180D)

Connectors

Dry Plenum Rated Power Connector
20/2 Gauge Wire
(A2-PC-2P-PLM-DRY-X)
X = Specify Length, 36” Default
